Timekeeping on ESXi

Timekeeping on ESXi Hosts is a particularly important, yet often overlooked or misunderstood topic among vSphere Administrators.

I recall a recent situation where I created an anti-affinity DRS rule (separate virtual machines) for a customer’s domain controllers. Although ESXi time was correctly configured, the firewall had been recently changed and no longer allowed NTP. As it happened, the entire domain was running fine and time was correct before the anti-affinity rule took effect. Unfortunately, as soon as the DC migrated (based on the rule I created), its time was synchronized with the ESXi host it was moved to, which was approximately 7 minutes slow! The net result was users immediately experienced log-in issues.

Unfortunately, when you configure time on your ESXi Host, there is no affirmative confirmation that the NTP servers you specified are reachable or valid! It doesn’t matter if you add correct NTP servers, or completely bogus addresses to the Time Configuration; the result is that the ESXi will report that the NTP client is running and seemingly in good health! Moreover, there is no warning or alarm when NTP cannot sync with the specified server.

Let’s create an example where we add three bogus NTP servers:

In this example, you can see the three bogus NTP servers, yet the vSphere Client reports that the NTP Client is running and there were no errors!

The only way to tell if your NTP servers are valid and/or functioning is to access the shell of your ESXi host (SSH or Console) and run the command: ntpq –p 127.0.0.1


The result from ntpq –p demonstrates that *.mary.little.lamb is not a NTP server.

Now, let’s try using three valid NTP servers:

In this example, I have used us.pool.ntp.org to point to three NTP valid servers outside my network and the result (as seen from the vSphere Client) is exactly the same as when we used three bogus servers!


The result from ntpq –p demonstrate that there are three valid NTP servers resolvable by DNS (we used pool.ntp.org), but that the ESXi host has not been able to poll them. This is what you see when the firewall is blocking traffic on port 123!

Additionally, when firewall rules change, preventing access to NTP, the ‘when’ column will show a value (sometimes in days!) much larger than the poll interval!

When an ESXi host is correctly configured with valid NTP servers and it is actually getting time from those servers, the result form ntpq –p will look like this:


Here you see the following values:

remote Hostname or IP of the NTP server this ESXi host is actually using,
rfid Identification of the time stream.

  • INIT means the ESXi host has not yet received a response
  • CDMA means that the time stream is coming from a cellular network.
st Stratum
t tcp or udp
when last time (in seconds) the NTP was successfully queried. This is the important value: when the ‘when’ value is larger than the “poll” field, NTP is not working!
poll poll interval (in seconds)
reach An 8-bit shift register in octal (base 8), with each bit representing success (1) or failure (0) in contacting the configured NTP server. A value of 377 is ideal, representing success in the last 8 attempts to query the NTP server.
delay Round trip (in milliseconds) to the NTP Server
offset Difference (in milliseconds) in the actual time on the ESXi host and the reported time from the NTP server.
jitter the observed variance in the observed response from the NTP server. Lower values are better.

The NIST publishes a list of valid NTP IP addresses and Hostnames, but I prefer to use pool.ntp.org in all situations where the ESXi Host can be permitted access to a NTP server on port 123. The advantage to pool.ntp.org is that it changes dynamically with availability and usability of NTP servers. Theoretically, pool.ntp.org is a set-and-forget kind of thing!

ESXi Time Best Practices

Do not use a VM (such as a Domain Controller) that could potentially be hosted by this ESXi as a time-source.

Use only Stratum 1 or Stratum 2 NTP Servers

Verify NTP Functionality with: ntpq –p 127.0.0.1

VMs which are already timeservers (such as Domain Controllers) should use either native time services such as w32time or VMware Tools time synchronization, not both! See: VMware KB 1318

Using VMware Paravirtual devices

VMware Paravirtual

One of the most common oversights in vSphere deployments is a failure to use the Paravirtual drivers that VMware has provided us for networking and storage.

On a physical platform, one chooses supported device(s) for networking and storage, and then installs the correct driver(s) to support those devices. For example; on a physical system, you might specify LSI SAS for storage and Intel E1000 NIC’s for network. That particular combination is, in fact, so common that Operating Systems like Windows have the drivers for those devices pre-installed so they will be recognized both during and after installation. The ‘during’ part is particularly important too, because if the storage driver is not present at the time of install, the hard disk will not be recognized, and the installation fails!

On a virtual platform, it’s a completely different story. Even if the host ESXi server actually has LSI SAS storage adapters and Intel E1000E NIC’s, there is no correlation to the network and storage device for Virtual Machines. In fact, if you choose LSI or Intel (they are the default choices for Windows Server VM builds), the only potential benefit will be that Windows includes those drivers by default. You will, in fact, be emulating the corresponding physical devices by LSI and Intel, with resulting loss of performance!

The only true native storage and network devices for vSphere VMs are the VMware Paravirtual SCSI ( pvscsi ) and Network ( vmxnet3 ) device types and corresponding drivers. Problem is; while Linux distros (most all of them) will include support for Paravirtual devices by default, Microsoft is not so magnanimous. Users choosing to use either (or both) of the VMware Paravirtual device types, will have to install the corresponding drivers.

In most cases, VMware Paravirtual devices are supported for installation in Windows Family 5 (Server 2003, XP) and later, and natively supported by most Linux OS.

Benefits of using VMware Paravirtual SCSI and Network devices include:

  • Better data integrity[1] as compared to Intel E1000e
  • Reduced CPU Usage within the Guest
  • Increased Throughput
  • Less Overhead
  • Better overall performance

I have created an example Windows Server 2012 R2 VM using only the default E100e and LSI SAS device types and I am going to show you how easy it is to convert from the default (emulated physical) to VMware Paravirtual drivers. For the following steps to work, the VMware Tools must be installed in the VM which is being updated.

Upgrading a VM to vmxnet3 Paravirtual Network Adapter

During the following procedures, it is important to use the Virtual Machine Remote Console (as opposed to RDP) because we will be causing a momentary disconnection from the network.

The biggest challenge is that the static IP address, if assigned, is associated with the device and not with the VM. Therefore, when you upgrade to the vmxnet3 adapter, your challenge will be un-installing and eliminating any trace of the “old” NIC to avoid seeing the dreaded message: “The IP address XXX.XXX.XXX.XXX you have entered for this network adapter is already assigned to another adapter[2]

Using the VMRC, log in to your Windows VM and run the device manager with: devmgmt.msc

You will see that the Network adapter is clearly listed as an Intel

Now go to the Network and Sharing Center and click on any (all) of the active Networks to observe their settings

You will notice that the speed is clearly 1.0 Gbps

Click on: Properties

Choose TPC/IPv4 and then click: Properties

Take note of the IP Address, Subnet Mask, Gateway, and DNS

Go to: VM > Edit Settings


Remove the Network Adapter(s) from the VM and click OK. In truth, you could both remove the old adapter and add the new vmxnet3 adapter simultaneously, but we will do it in separate steps for clarity.

Notice, the active networks list is empty

Although we have removed the device from the VM, we have not removed its configuration from the system. Therefore, the IP address we saw earlier is still assigned to the E1000e Virtual NIC we just removed. In order to cleanly install a Paravirtual NIC, we need to remove the Intel NIC completely.

Open a command window (this must be done first from the command window) and run the following commands:

set devmgr_show_nonpresent_devices

start devmgmt.msc

After the device Manager window is open, select: View > Show Hidden Devices

Many admins falsely believe that is is simply enough to show hidden devices, but this is not true. It is absolutely necessary to “show_nonpresent_devices” at the command line first!

You should now be able to find the (now removed) Intel NIC listed in lighter text than the devices which remain resent.

Right-click and select: Uninstall


OK

And it’s gone!

Go to: VM > Edit Settings

Edit Settings



Click: Add

Choose: Ethernet Adapter

Set the Type to: VMXNET 3 and then choose the appropriate Network Connection (usually VM Network), then click: Next

Click: Finish

Now click: OK

You will see the vmxnet3 Ethernet Adapter added to the Device Manager

Now click the active network, in this case “Ehternet”

Notice the speed listed as 10 Gbps. This does not mean that there are 10 Gbps NICs in the ESXi host merely that the observed speed of the network for this VM is 10 Gbps.

Click on: Properties

Now choose: TCP/IPv4 and select: Properties

Re-assign all of the IP addresses and subnet mask you observed earlier

And you have upgraded to the VMware Paravirtual device VMXNET 3

Upgrading a VM to pvscsi VMware Paravirtual SCSI Adapter

The trick in switching to the VMware Paravirtual SCSI adapter is in adding a dummy disk to the VM, which will force Windows to install the pvscsi driver, included with the VMware Tools package you have installed as part of a separate process.

Start the device manager with devmgmt.msc

Observe the LSI Adapter listed under Storage Controllers

Go to: VM > Edit Settings

Edit Settings

Choose: Add

Select: Hard Disk and then: Next

Choose: Create a new virtual disk and then: Next

The disk you create can be most any size and provisioning. We choose 10 GB Click: Next

In this step, it is critical that you place the new disk on an unique SCSI Node. That is to say, if the existing disk is on 0:0, then plane the new disk on 1:0 (you must not combine it with any LSI nodes, such as 0:1 or the process will not work)

Now click: Finish

Notice, you have added, not just a disk, but also a New SCSI Controller.

Now click: Change Type

Select: VMware Paravirtual

Now click: OK

Once the disk is added, look again in the Windows Device Manger and make sure that you can see the VMware PVSCSI Controller. If you can, that means the PVSCSI drivers have successfully loaded, and you can proceed.

Now we have to shut down the VM.

Shut Down Guest

Once the VM is off, Go to: VM > Edit Settings

Edit Settings

Choose the dummy disk (whichever one it was, BE CAREFUL HERE! and click: Remove

Although I failed to do so in creating this demo, you probably want to choose “Remove from virtual machine and delete files from disk,” to avoid leaving orphan files around.

Now select the SCSI controller(s) which are not already Paravirtual and choose: Change Type

Select: VMware Paravirtual

Now click: OK

Power your VM back on and observe that only the VMware Paravirtual device remains!

It should be noted; just as with the Intel NIC, the LSI device remains as a “nonpresent” device. If you feel like going the extra mile, repeat the steps to show nonpresent devices and uninstall the LSI device!

  1. http://kb.vmware.com/selfservice/microsites/search.do?language=en_US&cmd=displayKC&externalId=2058692
  2. http://kb.vmware.com/selfservice/microsites/search.do?language=en_US&cmd=displayKC&externalId=1179

Mission Critical Virtual Machines on VMware vSphere

Building Mission Critical VMs on VMware vSphere is pretty simple. There are just a few commonly acknowledged Best Practices with which to adhere, regardless of whether you are installing Windows or Linux:

  • Use Paravirtualized drivers wherever possible
  • Remove unnecessary hardware from the VM (settings)

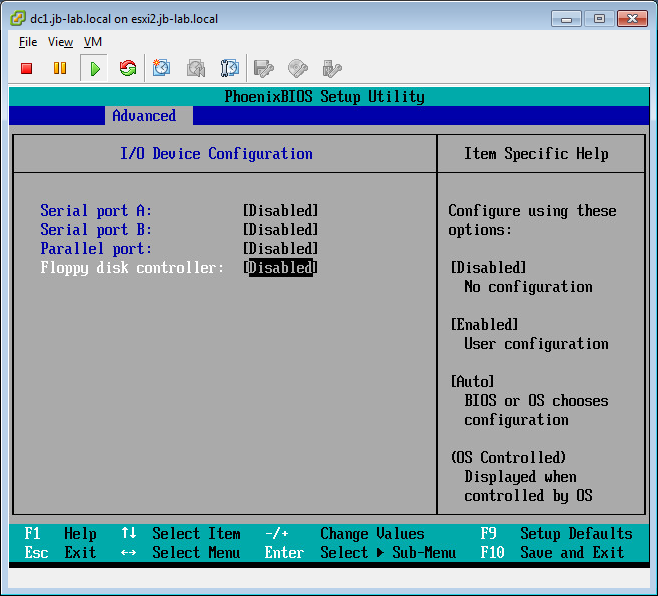

  • Disable unnecessary or unused devices in BIOS
  • Assign no more resources to the VM than are actually required

In the following steps, I am going to be building a VM to serve as Active Directory Domain Controller for my lab (jb-lab.local) on Windows Server 2012. Continue reading
